常州市上能锅炉有限公司专注设计制造电加热导热油炉.

Changzhou Shangneng Boiler Co., Ltd. specializes in designing and manufacturing electric heating and heat transfer oil furnaces,

电加热导热油炉功能特点：Functional characteristics of electric heating and thermal oil furnace:

1、具有低压、高温、安全、高效节能的特点。

1. It has the characteristics of low pressure, high temperature, safety, high efficiency and energy saving.
2、具有完备的运行控制和安全监测装置，可以精密地控制工作温度。

2. Equipped with complete operation control and safety monitoring devices, it can precisely control the working temperature.
3、结构合理、配套齐全、安装周期短，运行和维修方便，便于锅炉布置。

3. Reasonable structure, complete supporting facilities, short installation cycle, easy operation and maintenance, and convenient boiler layout.
4、由于电加热有机热载体炉采用先进的防爆结构，可应用于工厂Ⅱ区防爆，防爆等级可达C级。

4. Due to the advanced explosion-proof structure adopted by the electric heating organic heat carrier furnace, it can be applied to the explosion-proof of Zone II of the factory, and the explosion-proof level can reach Class C.

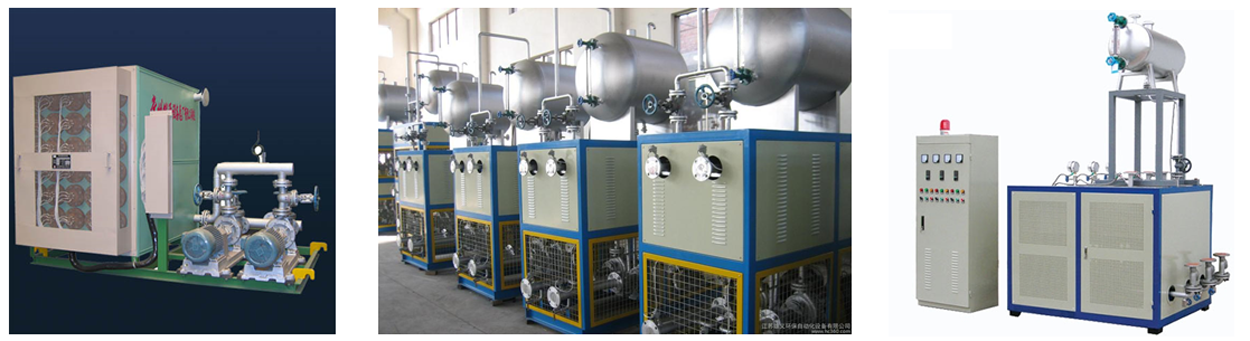

电加热导热油炉非防爆型的图例，

Legend of non explosion proof electric heating and heat transfer oil furnace,

电加热导热油炉非防爆型与非防爆型的，在化工园区应买防爆型的，防爆等级：dIIBT4,防护等级IP55

For non explosion proof and non explosion proof electric heating oil furnaces, explosion-proof types should be purchased in chemical industrial parks, with explosion-proof rating of dIIBT4 and protection level of IP55

 电加热导热油炉工作原理： Working principle of electric heating thermal oil furnace:

 电加热导热油炉的热量是由浸入导热油的电加热元件产生和传输的，以导热油为介质，利用循环泵，强制导热油进行液相循环，将热量传递给用一个或多种用热设备，经用热设备卸载后，重新通过循环泵，回到加热器，再吸收热量，传递给用热设备，如此周而复始，实现热量的连续传递，使被加热物体温度升高，达到加热的工艺要求。

The heat of the electric heating oil furnace is generated and transmitted by the electric heating element immersed in the heat transfer oil. Using the heat transfer oil as the medium, a circulation pump is used to force the heat transfer oil to circulate in the liquid phase, transferring the heat to one or more heating devices. After being unloaded by the heating devices, the heat is returned to the heater through the circulation pump, absorbed again, and transferred to the heating devices. This process repeats to achieve continuous heat transfer, raising the temperature of the heated object and meeting the heating process requirements.

电加热导热油炉是由防爆电加热器、有机热载体炉、现场防爆操作箱、热油泵、膨胀槽、储油槽等在工厂组装成一个整体式的电加热炉，用户只仅需接入电源、介质的进出口管道及一些电气接口即可使用，该产品广泛应用于石油、化工、制药、纺织印染、轻工、建材等工业领域。

The electric heating thermal oil furnace is an integrated electric heating furnace assembled in a factory from explosion-proof electric heaters, organic heat carrier furnaces, on-site explosion-proof operation boxes, hot oil pumps, expansion tanks, oil storage tanks, etc. Users only need to connect the power supply, medium inlet and outlet pipelines, and some electrical interfaces to use it. This product is widely used in industrial fields such as petroleum, chemical, pharmaceutical, textile printing and dyeing, light industry, and building materials.

一、 电加热导热油炉技术参数
